OUR PRODUCT
WAYMOTE System
WAYMOTE SWITCHING PRO 126
A fully programmable switching system with keypad that overcomes the need for fuse boxes and battery guard with both features built into the system.
The system is designed to activate 10 positive outputs rated at 15 amps, 2 positive outputs rated at 25 amps and 6 negative outputs at 1.7 amps.
WAYMOTE SWITCHING PRO 84
A fully programmable switching system with keypad that overcomes the need for fuse boxes and battery guard with both features built into the system.
The system is designed to activate 6 positive outputs rated at 15 amps, 2 positive outputs rated at 25 amps and 4 negative outputs at 1.7 amps.

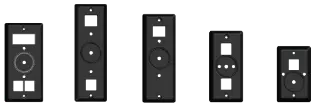

WAYMOTE Accessories
WAYMOTE KEYPAD 7+1
Illuminated key pad 1 ON/OFF button 7 switching buttons, programmable keypad with 2 channel expander socket. This expander socket enables 2 additional switch location i.e rear of vehicle, power ON/OFF button and 1 switching button on each switch.
See additional switch accessory Keypad expander 2+1 details below
WAYMOTE KEYPAD 4+1
Illuminated key pad 1 ON / OFF button 4 switching buttons, programmable keypad with 1 channel expander socket. This expander socket enables additional switch location i.e rear of vehicle, power ON/OFF button and 1 switching button.
See additional switch accessory 1+1 key pad details below
WAYMOTE KEYPAD 3+1
Illuminated key pad 1 ON / OFF button 3 switching buttons, programmable keypad with 1 channel expander socket. This expander socket enables additional switch location i.e rear of vehicle, power ON/OFF button and 1 switching button.
See additional switch accessory 1+1 key pad details below
WAYMOTE KEYPAD 2+1
Illuminated key pad for rear of vehicle 1 ON/OF button 2 switch buttons.
You need to add a line describing the plug in cable connection to Keypad 7+1.
WAYMOTE KEYPAD 1+1
Illuminated extension key for rear of vehicle 1 ON/OFF button 1 Switch button
COMPATIBLE BACK COVER
MULTI BRACKET
Designed to fit on vehicle dash board or any suitable surface.
The Waymote multi bracket enables the user to adjust the viewing angle and function of the illuminated key pad switches.
WAYMOTE
W-TOUCH LCD
LCD touch panel with multiple graphic unloadable icons. Linked to Waymote ECU controls all power related accessories. Beacons, Flashers, Inverters, hand wash, microwaves. Electronically fused overcomes fuse box requirement.
WAYMOTE UP LOADER UPL 84/126
Once the Waymote 84 and 126 systems have been programmed the Waymote Up Loader enables the user to either download the programme directly onto the Waymote ECU or onto the Up Loader. The benefit of the Up Loader unit is it will store the program which can then be directly...
